Introducing LVDS
Tx
& Rx devices from
|
|
Displaze now represent Thine Electronics Inc. in the UK. The product line comprises key components for Note PC, LCD Displays, Flat Panel Monitors and PDP/Projection/Digital TVs. If you use or design with LVDS you should contact us now for the latest product and price information. |
Key Features & Benefits:-
Pin compatible with National Semi. parts (DS90C385/F386 and DS90C365/F366) giving a potential Cost saving
On Chip Jitter filtering makes a more reliable solution
3.3V Power Down Mode provides reduceed power consumption
Narrow Bus to reduce cable size and cost

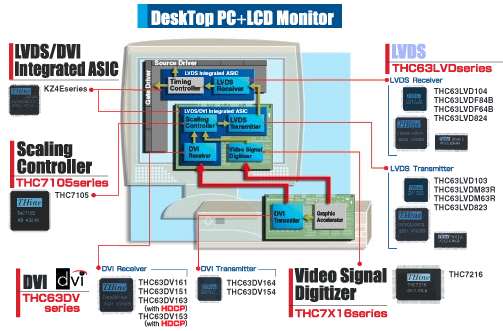

Product Range
Thine offer a range of LVDS Chipsets to transmit and receive data over a wide frequency range, supporting different resolution displays.
THC63LVD103/THC63LVD104 90 MHz 30 bit colour LVDS (Transmitter/Receiver)
THC63LCDM83R/THC63LVDF84B 85 MHz 24 bit colout LVDS
THC63LVDM63R/THC63LVDF64B 85 MHz 18 bit colour LVDS
THC63LVD823/THC63LVD824 170 MHz 24 bit colour LVDS
The THC63LVDM83R/THC63LVDF84B is compatible with Nat Semi DS90C385/F386
The THC63LVDM63R/THC63LVDF64B is compatible with Nat Semi DS90C365/F366

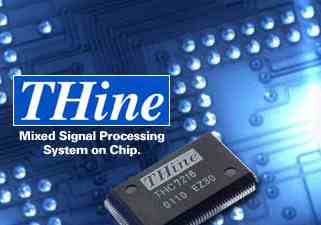

Thine's Video Signal Digitizer provides all functions needed in digitizing analog video signals. This simplifies designing/constructing the analog front end of LCD/Plasma flat panel displays, data projectors and digital TV sets. It features three high speed 8bit ADCs and a low jitter line-lock PLL allowing capturing of video signals ranging from NTSC to QXGA resolution with high quality conversion. The device also integrates a sync processing unit, whose sync monitoring function provides information that is useful in identifying refresh rate, resolution and sync/scan format of given video signals. The unit also provides functions to extract vertical sync from composite sync and generate a signal to identify field parity.
Features
Cost Saving due to functions on single monolithic chip
270Msps maximum conversion rate
Various forms of syncs accepted
All functions and operation parameters programmable via 4-wire serial interface port
Low power consumption
For further information on these and other components from the Thine product range, please contact Displaze Limited or see us next month at the NEC.
