Displaze News

Expanded range of LED Backlit LCD's

Durapixel™ is Litemax's ‘Next generation' LED-backlight panel technology. This LED backlight can support wide operational temperature ranges of -20°C to 60°C, which may overcome the limitation on existing LCD's for some critical environments.

Power consumption is reduced. Compared to CCFL high brightness panels Durapixel™ saves up to 30% power consumption resulting in longer battery life for portable applications and mobile devices.

Brightness is not compromised, Durapixel™ delivers up to 1000nit and offers up to 90% uniformity, is ROHS compliant and the LED drive electronics can accept DC power supply contributing towards EMI noise reduction. Due to the robust nature of LED backlights over CCFL tubes and with a wide dimming range, Durapixel™ technology is ideally suited to aviation, transportation, marine and military applications.

	DLF0615E	DLF1055E	DLF1246E	DLF1236E	DLF1555E	DLF1744E	DLF1954E
Size	6.4"	10.4"	12.1"	12.1"	15.0"	17.0"	19.0"
Luminance	1000	800	1000	1000	1000	800	700
Resolution	640 x 480	1024 x 768	800 x 600	1024 x 768	1024 x 768	1280 x 1024	1280 x 1024
Contrast	400:1	500:1	800:1	800:1	700:1	800
Status	Samples	Production	Production	Production	Production	Apr 08	Apr 08
MTBF	70Khrs	70Khrs	70Khrs	70Khrs	70Khrs	70Khrs	70Khrs
Options	AOT	AOT	AOT	AOT	AOT	AOT	AOT

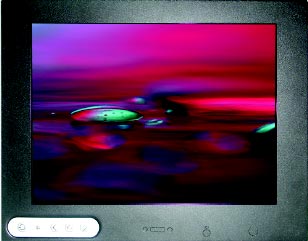

AOT
Using Advanced Optibond Technology the LCD sunlight readable performance may be enhanced even further. The addition of this process to the front of the LCD improves contrast whilst reducing the amount of reflections. It also provides added durability for the front surface.

A matrix of Ultra Bright surface mount LED's provide good luminance uniformity with wide dimming ranges available using either the standard LED backlight controller or customised variants of it. Variable voltage or Pulse width Modulation (PWM) are the two methods of varying the backlight brightness. This may be enhanced further with the addition of light sensing solutions to provide automatic brightness control.

what ever your application Displaze can offer you a cost effective solution from world leading manufacturers
